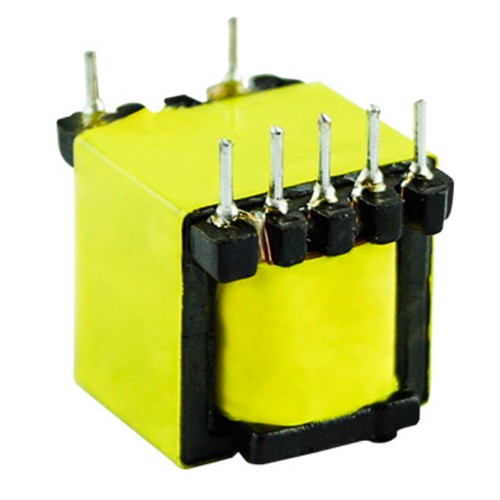

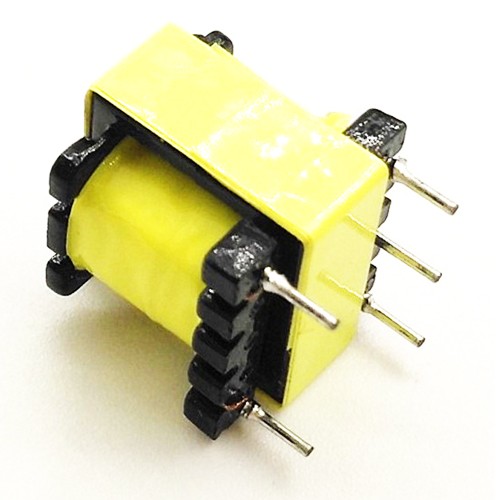

EE13 high flyback transformer

EE13  high flyback transformer

1. EE13 high frequency transformer performance

1. Working frequency: 20KHZ-500KHZ

2. Output power: 0.5 to 10 W

3. Operating temperature: -40℃ to+125℃

4. Storage temperature: -25℃ to +85℃

5. Storage humidity: 30 to 95%

2.EE13 high frequency transformer characteristics

EE13 horizontal high frequency transformer has the characteristics of small size, low price and high reliability. EE type transformer is the basic type of ferrite core, stable performance, low cost, high current. Widely used in power conversion and line filtering. Volume from small to large, to meet the needs of various application circuits. Such as the use of 155℃ or 180℃ polyurethane enameled wire, can meet different temperature conditions, suitable for all kinds of switching power supply and inverter, UPS, etc.

Application of EE13 high frequency transformer

EE-13 horizontal high frequency transformers are commonly used in mobile phone chargers, DC-DC converters, drive transformers, digital cameras, handheld switching power chargers, etc.
